Name: Rotary Drilling Tools Three Blade Wings Drag Rock Drill Bit For Soft Formations
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: Three Blade Wings Drag
Price: 508.50 USD
Availability: InStock

Startseite Produkte Rock Bohrwerkzeuge

Rotary Drilling Tools Three Blade Wings Drag Rock Drill Bit For Soft Formations

Produktdetails:

Place of Origin:	CHINA
Markenname:	MIROC
Zertifizierung:	ISO
Model Number:	Three Blade Wings Drag

Zahlung und Versand AGB:

Minimum Order Quantity:	1
Delivery Time:	20-30

Kontakt

Ausführliche Produkt-Beschreibung

Packing:	Plywood case	Usage:	Well Drilling
Use:	Heavy Construction, Mining, Oil and Gas, Quarries	Name:	Drag Bit or Blade BitStep Type
Material:	High Carbon Steel, Tungsten Carbide, Alloy or PDC	Available Size:	3 1/2" to 17 1/2'
Connection:	APl reg pin	Application:	Soil, Mud, and other soft rock formation drilling

Drag bit are manufactured from forged high-quality alloy steel and hard alloy, plus state of art welding technology and multiple precision heat treatment to provide the highest penetration rate and longest lifespan at the roughest condition.

A drag bit is usually designed for soft formations such as sand, clay or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.

Three-wing bits tend to drill faster, whereas four-wing bits are longer-lasting, more durable, and drill a straighter hole.

Application: water well, Geothermal, Environmental, mining, exploration

Bit Diameter
(Inches)	(mm)	(Inches)	(mm)	(Inches)	(mm)
3 1/2"	88.9 mm	6 1/8"	155.6mm	8 7/8"	225.4mm
3 5/8"	92.1 mm	6 1/4"	158.8mm	9"	228.6mm
3 3/4"	95.3 mm	6 1/2"	165.1mm	9 1/8"	231.8mm
3 7/8"	98.4 mm	6 5/8"	168.3mm	9 1/4"	235.0mm
4"	101.6 mm	6 3/4"	171.5mm	9 1/2"	241.3mm
4 1/8"	104.8 mm	6 7/8"	174.6mm	9 5/8"	244.5mm
4 1/4"	108.0 mm	7"	177.8mm	9 3/4"	247.7mm
4 1/2"	114.3 mm	7 1/8"	181.0mm	9 7/8"	250.8mm
4 5/8"	117.5 mm	7 1/4"	184.2mm	10"	254.0mm
4 3/4"	120.7mm	7 3/8"	187.3mm	10 5/8"	269.9mm
4 7/8"	123.8mm	7 1/2"	190.5mm	11 1/2"	292.1mm
5"	127.0mm	7 5/8"	193.7mm	12"	304.8mm
5 1/8"	130.2mm	7 3/4"	196.9mm	12 1/4"	311.2mm
5 1/4"	133.4mm	7 7/8"	200.0mm	12 1/2"	317.5mm
5 3/8"	136.5mm	8"	203.2mm	13 3/4"	349.3mm
5 1/2"	139.7mm	8 1/8"	206.4mm	14"	355.6mm
5 5/8"	142.9mm	8 1/4"	209.6mm	14 3/4"	374.7mm
5 3/4"	146.1mm	8 1/2"	215.9mm	15"	381.0mm
5 7/8"	149.2mm	8 5/8"	219.1mm	15 3/4"	400.1mm
6"	152.4mm	8 3/4"	222.3mm	17 1/2"	444.5mm
Connection thread		2 3/8", 2 7/8", 3 1/2", 4 1/2", 6 5/8" API Pin
Bits profiles		Stepped and chevron
Numbers of wings		Three wings and four wings

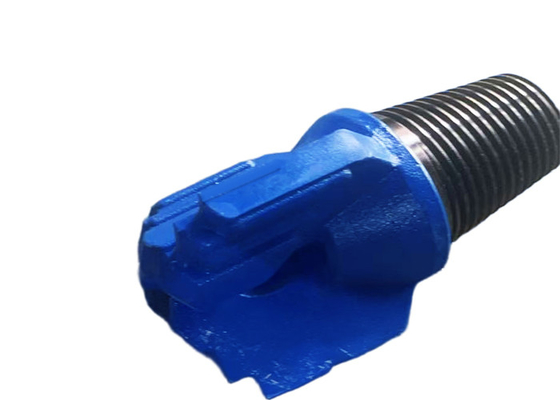

Rotary Drilling Tools Three Blade Wings Drag Rock Drill Bit For Soft Formations 0

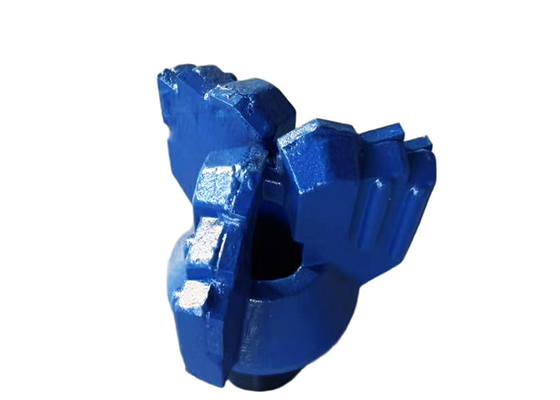

Rotary Drilling Tools Three Blade Wings Drag Rock Drill Bit For Soft Formations 1

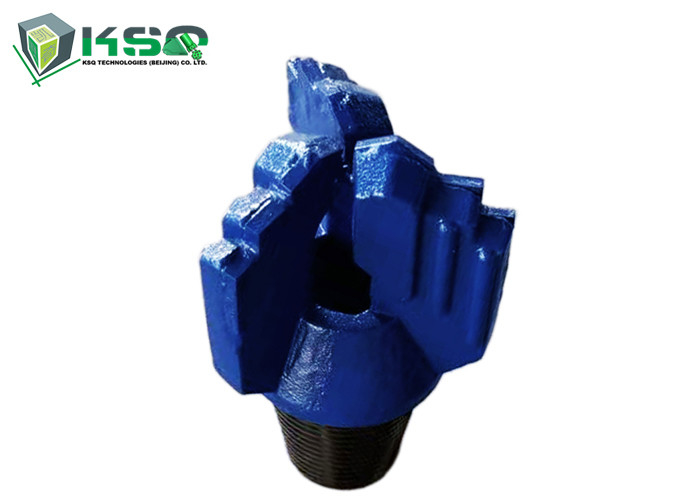

Rotary Drilling Tools Three Blade Wings Drag Rock Drill Bit For Soft Formations 2
