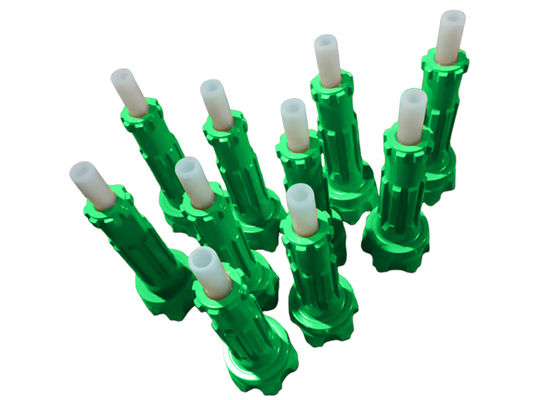

Name: DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: Dhd3.5-95mm
Price: 508.50 USD
Availability: InStock

Startseite Produkte Rock Bohrwerkzeuge

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Produktdetails:

Herkunftsort:	CHINA
Markenname:	MIROC
Zertifizierung:	ISO
Modellnummer:	Dhd3.5-95mm

Zahlung und Versand AGB:

Min Bestellmenge:	1
Lieferzeit:	20-30
Versorgungsmaterial-Fähigkeit:	3000

Kontakt

Ausführliche Produkt-Beschreibung

Verwendung:	Brunnenbau, Bergbau, Bauwesen, Steinbruch	Form - Gesicht:	Flach oder konkav oder konvex
Luftdruck:	Hoher Luftdruck	Technologie:	Thermoeinsatz
Typ:	DTH-Hammerstückchen	Material:	Legierungsstahl
Qualität:	Qualitätsähnlichkeitsweltspitzenklassenmarken 100%	Vorteile:	Hohe Qualität und Fabrikpreise
Hervorheben:	DTH hammer drill bit for mining , 95mm rock drilling tool , water well drilling rig bit

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Product Description

The DHD3.5 drill bit is a common DTH hammer drill bit model, widely used in mining, geological exploration, water well drilling, and construction projects. It connects with the drill pipe through API standard threads to ensure stability and reliability.

Manufactured with high-quality materials and advanced technology, the DHD3.5 drill bit offers extended service life and reduced replacement frequency.

This high air pressure DTH drill bit features our newest design and represents one of the most advanced DTH drill bits available worldwide.

Applications

Ideal for use in mining, energy, metallurgy, geology, coal, water conservancy, chemical industry, and road construction applications.

Our Advantages

Complete solution provider (DTH drill bit, DTH hammer, DTH Drill Rod, and value-added services)
Lower energy consumption with higher impact frequency - drilling speed is 15%-30% higher than other DTH Hammer series
Simple structure with reliable parts, long lifespan, and easy, cost-effective maintenance
Reduced air and oil consumption (approximately 10% lower oil consumption than models with foot valves)
Check valve can be replaced with one featuring a bigger air controlling hole for more efficient cuttings discharge

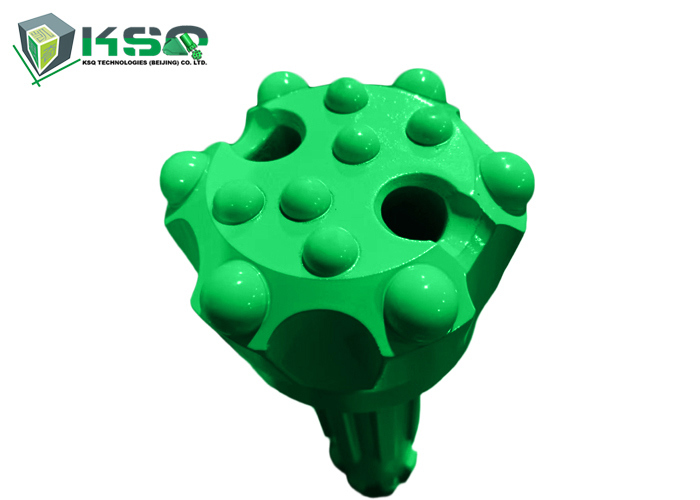

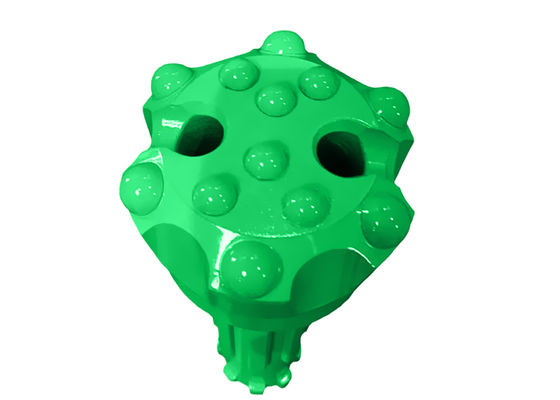

DHD3.5 Ballistic Convex Face Specifications

Bit Diameter (mm)	Bit Diameter (inch)	Buttons (Front)	Buttons (Gauge)	Flushing Holes	Weight (kg)	Part Number
90	3 1/2	4×12, 2×12	8×12	2	4.5	4148301219
95	3 3/4	4×12, 2×12	8×12	2	4.8	4148301220
100	3 7/8	4×13, 2×13	8×13	2	5	4148301221
105	4 1/8	4×14, 2×14	8×14	2	5.5	4148301222
