Herkunftsort: | CHINA |
Markenname: | MIROC |
Zertifizierung: | ISO |
Modellnummer: | T38-76mm Knopfbohrer |
Min Bestellmenge: | 1 |
---|---|
Lieferzeit: | 20-30 |
Versorgungsmaterial-Fähigkeit: | 3000 |
Modell Nr.: | T38 | Länge: | Stummel-lang |
---|---|---|---|
Material: | Stahllegierung und Wolframkarbide | Durchmesser: | 76 mm |
Spezifikation: | 57-115mm | Klasse: | Hart |
Anwendung: | Tisch- und Langlochbohren | ||
Hervorheben: | 76mm flat face rock drill bit,standard skirt threaded button bit,T38 rock drilling tools with warranty |
Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 9 threads: R28, R32, R38, T38, T45, T51, T60, ST58 and ST68. They can be used with button bits, cross bits and reaming products.
KSQ drilling's comprehensive range of bench and production rock drilling tools includes everything from 1" rope thread equipment all the way up to T60 thread equipment. Many customers say that the drill rods, tubes and button bits are the best on the market today. Let's just say they will improve productivity considerably.
(1) Thread: R32, HL38, T38, T45, T51, T60, ST58, ST68
(2) Diameter: 38-140mm

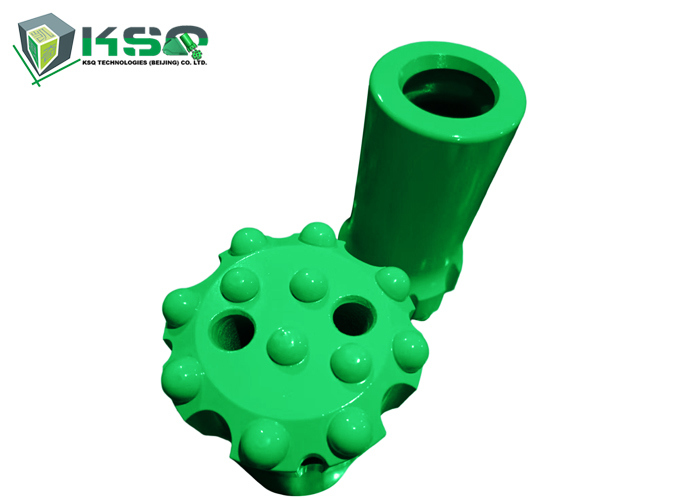

Ballistic button bits are often used in consolidated rock formations that are not particularly hard. Compared to spherical button bits, the carbide tips of ballistic button bits are more prominent, which is aggressive for rock penetration, and let the drilling speed faster. Therefore, the ballistic button bit is an ideal choice for drilling soft rock and medium-hard rock. T38 76MM button bit with ballistic carbide can be widely used in Bench drilling, underground production drilling, long hole drilling, and other fields.
Diameter | Buttons and Size (mm) | Flushing hole | Weight |
---|---|---|---|
Spherical | |||
64 mm (2 1/2") | 3×11 | 6×12 | 1.8 kg |
Ballistic | |||
64 mm (2 1/2") | 3×11 | 6×12 | 1.8 kg |
