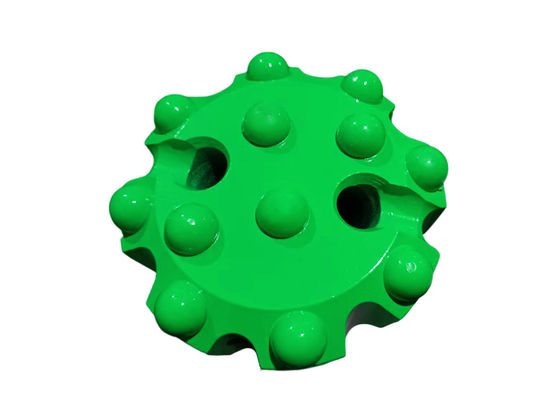

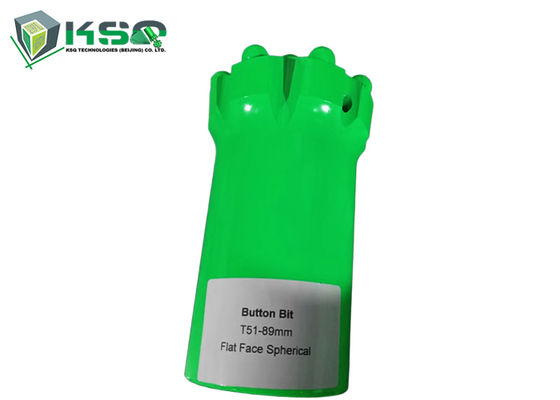

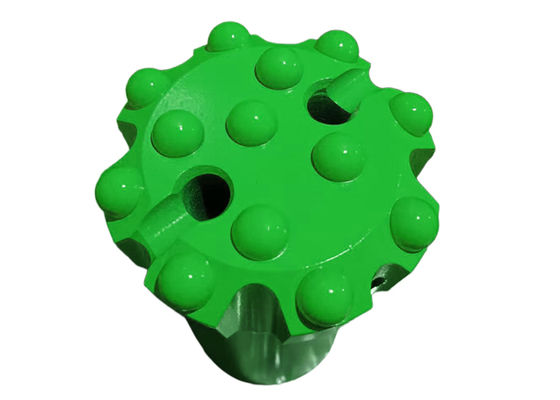

Name: T51-89mm Thread Button Bit with Semi-ballistic Carbide Design for Bench Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T51-89mm
Price: 508.50 USD
Availability: InStock

Startseite Produkte Rock Bohrwerkzeuge

T51-89mm Thread Button Bit with Semi-ballistic Carbide Design for Bench Drilling

Produktdetails:

Herkunftsort:	China
Markenname:	MIROC
Zertifizierung:	ISO
Modellnummer:	T51-89mm

Zahlung und Versand AGB:

Min Bestellmenge:	1
Lieferzeit:	20-30
Versorgungsmaterial-Fähigkeit:	3000

Kontakt

Ausführliche Produkt-Beschreibung

Oberflächenbehandlung:	verzinkt	Stichwort:	Knopfstückchen
Tastentyp:	Sphärisch, ballistisch, konisch	Bit-Körper:	Normaler Typ und Retrac-Typ
R Thread:	R22 R25 R28 R32 R38	T-Garn:	T38 T45 T51 ST58 GT60
Bit-Gesichtsform:	Flaches Gesicht und Fallzentrum
Hervorheben:	T51-89mm Thread Button Bit , Semi-ballistic Carbide Button Bit , Bench Drilling Button Bit

T51-89mm Thread Button Bits Semi-ballistic Carbide Design for Bench Drilling

Rock drilling thread button bits are widely used in mining, drilling, quarrying, engineering, construction, water well drilling, and oil exploration industries. Our thread button bits are manufactured using high-quality alloy steel bars and tungsten carbides with superior wear resistance and impact toughness. Through heat treatment, they can withstand the toughest rock drilling demands while efficiently transmitting impact energy into the rock.

Technical Specifications

Thread Button Bit	Diameter	Carbide size(mm)	Flushing hole	Weight (kg)
	mm \| in	Front \| Gauge	Qty×size
T51(2") standard body
89	3 1/2	6×12 \| 8×14	2 \| 2	4.48
102	4	7×12 \| 8×14	4 \| 1	5.26
115	4 1/2	8×12 \| 8×14	4 \| 1	7.62
127	5	9×12 \| 8×16	4 \| 1	8.58
T51(2") retrac body
89	3 1/2	6×12 \| 8×14	2 \| 2	5.08
102	4	7×12 \| 8×14	4 \| 1	5.86
115	4 1/2	8×12 \| 8×14	4 \| 1	8.12
127	5	9×12 \| 8×16	4 \| 1	9.18
Reaming bit
152	6	2×14 \| 20×14	5 \| 2	-

Bit Face Shape Selection

Drop Center Bit: For high penetration rates in soft to medium hard and fissured rock formations with low to medium air pressures. Provides maximum hole deviation control.
Concave Face: All-round application bit face for medium hard and homogeneous rock formations. Offers good hole deviation control and excellent flushing capacity.
Convex Face: For high penetration rates in soft to medium-hard rock with low to medium air pressures. Most resistant to steel wash but has poor hole deviation control.
Double Gauge Face: Suitable for fast penetration in medium to hard rock formations. Designed for high air pressures with good resistance to steel wash.
Flat Face Bit: Ideal for hard to very hard and abrasive rock formations with high air pressures. Provides good penetration rates and resistance to steel wash.

Product Advantages

High Quality Reasonable Price High Efficiency Delivery On Time

Applications

The button bit is widely used for rock drilling, blasting holes, and other drilling operations in quarries, coal mines, road and dam construction projects, and similar applications.
