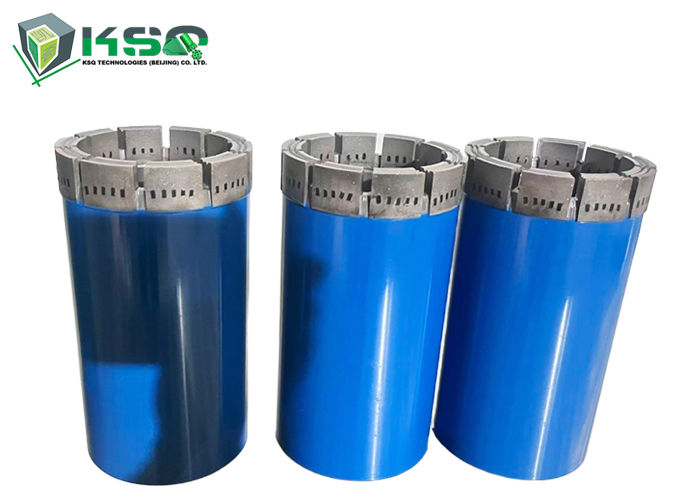

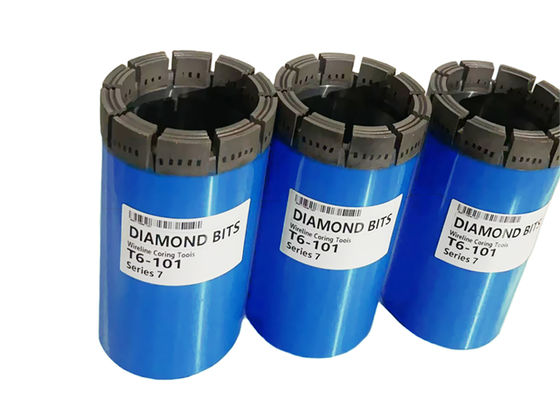

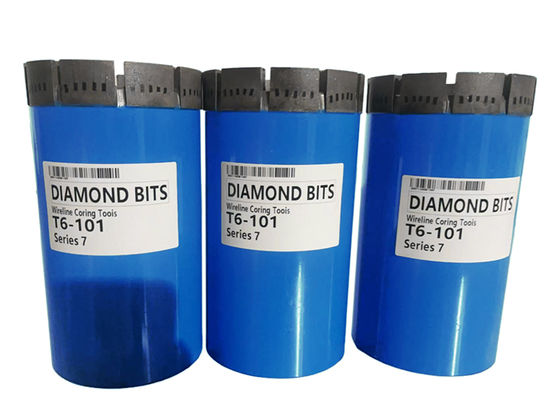

T6-101 Impregnated Diamond Core Bit with Standard Crown Profile and Face Discharge Waterways for Mining Exploration

Produktdetails:

Herkunftsort:	China
Markenname:	MIROC
Zertifizierung:	ISO
Modellnummer:	T6-101

Zahlung und Versand AGB:

Min Bestellmenge:	1
Lieferzeit:	20-30
Versorgungsmaterial-Fähigkeit:	3000

Kontakt

Ausführliche Produkt-Beschreibung

Typ:	Kernbohrstück	Material:	Diamant
Kronenprofil:	Standard	Wasserstraßen:	Standard-/Face-Entladung /Turbo /Spiral
Applicaion:	Aller herkömmliche und Funkleitungs-Kernstoßbohrer	Verwenden:	Bergbau-Erforschung Diamond Drilling
Hervorheben:	Standard Crown Profile Diamond Core Bit , Face Discharge Waterways Core Drill Bit , Tungsten Carbide Matrix Impregnated Diamond Core Bit

T6-101 Diamond Core Bit with Diamond for Mining

Product Description

The T6-101 Impregnated Diamond Core Bit is designed for surface exploration when used with the T6 series core barrel. These impregnated bits can penetrate a broad range of formations from soft to extremely hard rocks.

Manufactured with high-quality synthetic diamonds evenly distributed through a tungsten carbide matrix, these bits wear evenly during drilling, continuously exposing new, sharp diamond points throughout their lifespan. All impregnated bits feature T.C. and diamond gauge protection, with optimal diamond size, concentration, and matrix composition tailored to specific rock formations.

Size Specifications

Size	Outside Diameter (inch)	Outside Diameter (mm)	Inside Diameter (inch)	Inside Diameter (mm)
T6-76	2.997/2.987	76.12/75.87	2.249/2.239	57.12/56.87
T6-86	3.391/3.381	86.13/85.88	2.643/2.633	67.13/66.88
T6-101	3.981/3.971	101.12/100.8	3.115/3.105	79.12/78.87
T6-116	4.575/4.560	116.20/115.8	3.667/3.657	93.14/92.89
T6-131	5.165/5.150	131.19/130.8	4.257/4.247	108.13/107.89
T6-146	5.755/5.740	146.18/145.8	4.847/4.837	123.18/122.89

Applications

Impregnated diamond core bits (including NQ, HQ, T2-76 models) are widely used in mineral exploration and site investigation industries. These bits have become the standard in mineral exploration due to their superior performance advantages:

Extremely wide range of applications across various rock formations
Consistent performance in both soft and hard rock conditions
Long service life with continuous diamond exposure as the matrix wears
