Name: 7 Degree 34mm Taper Button Bit with Tungsten Carbide Buttons for High Performance Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 7-Grad-34-mm-Kegel-Knopfbohrer
Price: 508.50 USD
Availability: InStock

Startseite Produkte Rock Bohrwerkzeuge

7 Degree 34mm Taper Button Bit with Tungsten Carbide Buttons for High Performance Rock Drilling

Produktdetails:

Markenname:	MIROC
Zertifizierung:	ISO
Modellnummer:	7-Grad-34-mm-Kegel-Knopfbohrer

Zahlung und Versand AGB:

Min Bestellmenge:	1
Lieferzeit:	20-30
Versorgungsmaterial-Fähigkeit:	3000

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Knöpfe mit konischen Stücken	Material:	Wolframkarbide
Anwendung:	Steinbruch, Bohren kleiner Löcher	Vorteil:	Hohe Leistung
Farbe:	Maßgeschneidert	Verwendung:	Bergbau / Steinbruch / Tunneling
Tastentyp:	Halbkugelförmig/parabolisch/ballistisch/konisch
Hervorheben:	7 Degree Taper Button Bit , 34mm Tapered Button Bit , Tungsten Carbide Buttons Drill Bit

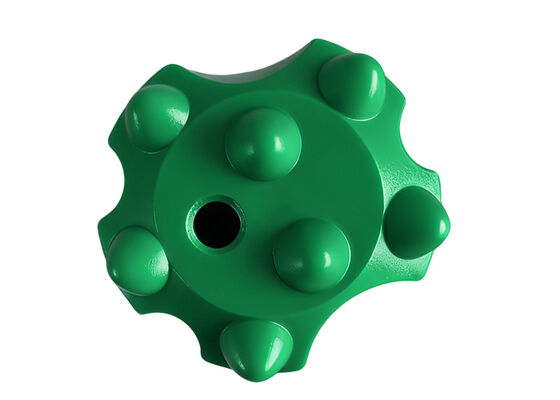

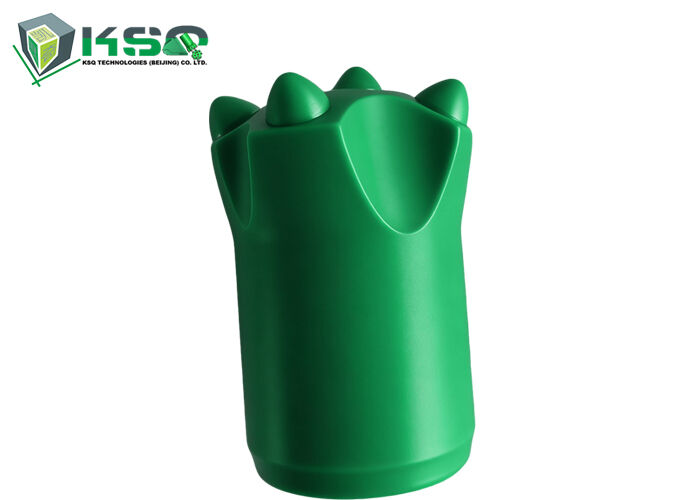

7 Degree 34mm Taper Button Bit

KSQ 7° - 34mm Taper Button Bit - Precision Rock Drilling

Complementing our range of precision reaming tools, KSQ manufactures high-performance taper button bits engineered for direct drilling applications. Designed for speed and durability, these bits are ideal for small-hole drilling in mining, quarrying, and construction projects.

Key Features

Proven Materials: Manufactured from high alloy steel with wear-resistant tungsten carbide buttons, matching the grade specifications of internationally well-known brands.

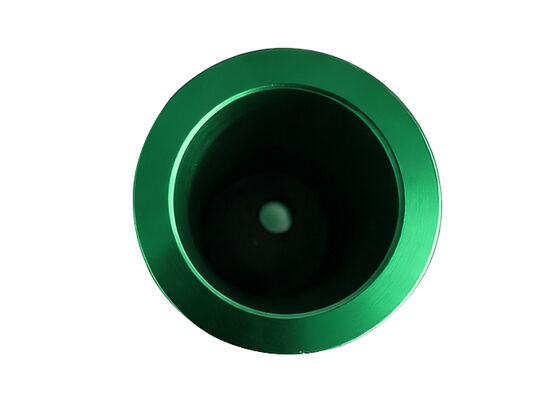

Optimized Design: The 7° tapered angle ensures a secure fit on the drill rod, while the strategically arranged button layout delivers fast penetration and efficient chip removal.
Superior Manufacturing: Produced under the same rigorous quality control and material standards as our internationally competitive reaming tools, ensuring long service life and consistent performance.

Technical Specifications

Bit Diameter	Buttons and Size (mm)	Flushing Hole	Weight	Part Number
32 mm 1 1/4 inch	2x7 5x7 35°	1 Front 1 Side	0.3 kg	4148300174
33 mm 1 2/7 inch	2x7 5x7 35°	1 Front 1 Side	0.31 kg	4148300175
35 mm 1 3/8 inch	2x7 5x8 35°	1 Front 1 Side	0.36 kg	4148300176
38 mm 1 1/2 inch	2x7 5x9 35°	1 Front 1 Side	0.41 kg	4148300177
41 mm 1 3/5 inch	2x7 5x9 35°	1 Front 1 Side	0.42 kg	4148300178
